MTP patch cord
MTP Fiber Patch Cord are terminated with MTP connector on both end. All of OMC’s MTP Connectors are from Taiwan, Japan, USA etc. MTP patch cord is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MTP products’ Standard:
Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
Structured cabling per TIA-568-C
Parallel Optics
Optical Internetworking Forum (OIF) Compliant
InfiniBand Compliant
InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
AVAILABILITY:
Ribbon and bundle cable available;
Patch cord, pigtail cable assemblies available.
MT-MT ribbon patch cord is available.
MTP Loopback available
MTP patch cord’s Specification:
| MTP’s spec items. | Single mode (UPC Flat polish, APC 8 degree polish) | Multimode (PC Flat polish) |
| Insertion loss | Standard loss≤0.7dB;Low loss≤0.35dB | Standard loss≤0.5dB;Low loss≤0.35dB |
| Return loss | ≥55dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings |
| Interchangeability | ≤0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -40 to + 85°C |
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
MTP Interference index
| Connector type | Testing items | Min | Max |
| MTP PC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | -0.2 | 0.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Max. Core Dip(nm) | -300 | 300 |
| Fiber height(nm) | -300 | 300 |
| ROC_X(abs)(mm) | 1000 | 3000 |
| MTP APC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | 7.8 | 8.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Fiberheight(nm) | | |
OEM Service.
High Quality MTP Cable Guarantee

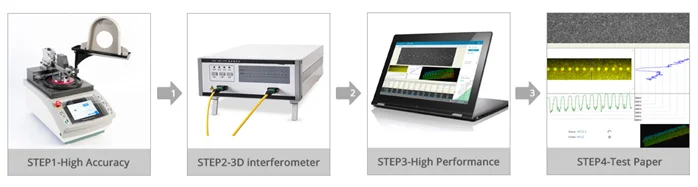

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MPO LGX Cassette, you can choose any of the polarities as you need.
