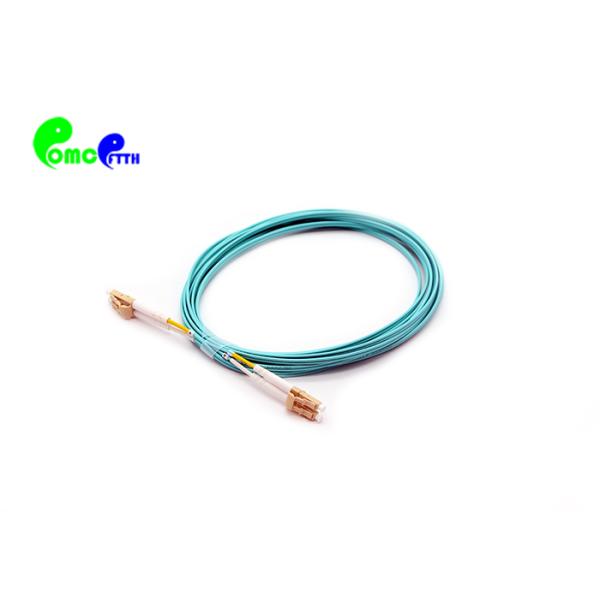

LC - LC Fiber Optic Patch cord SM 9 / 125 OM1 62.5 125 OM2 OM3 OM4 OM5 50 / 125 OFNR OFNP LSZH PVC Simplex Duplex
FIber Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.
OMC’s Patch cords are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit
Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.
Connector’s Standard:
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
Patch cord types
SIngle mode Patch cables
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Specification:
| Connector Type | LC to LC | Polish Type | UPC to UPC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | Minimum Bend Radius | 10mm |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | 1-144 cores | Cable Diameter | 0.9-3.0mm |
| Cable Jacket | PVC,LSZH,OFNR,OFNP | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
MM OM1 62.5/125 Patch cables
This 62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.
Specification:
| Connector Type | LC to LC | Polish Type | UPC to UPC |
| Fiber Count | 1-144cores | Fiber Mode | OM1 62.5/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 280m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | G.651 | Minimum Bend Radius | 15mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | PVC,LSZH,OFNR,OFNP | Cable Diameter | 0.9-3.0mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
MM OM2 50/125 Patch cables
This 50/125 OM2 multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.
Specification:
| Connector Type | LC to LC | Polish Type | UPC to UPC |
| Fiber Count | 1-144cores | Fiber Mode | OM2 50/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 550m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | PVC,OFNP,OFNR,LSZH | Cable Diameter | 0.9-3.0mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
MM OM3 50/125 Patch cables
This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
Specification:
| Connector Type | LC to LC | Polish Type | UPC to UPC |
| Fiber Count | 1-144F | Fiber Mode | OM3 50/125μm BIF |
| Wavelength | 850/1300nm | 10G Ethernet Distance | 300m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | G651 | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | OFNR,OFNP,PVC,LSZH | Cable Diameter | 0.9-3.0mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
MM OM4 50/125 Patch cables
This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.
Specification:
| Connector Type | LC to LC | Polish Type | UPC to UPC |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| 40G Ethernet Distance | 150m at 850nm | 100G Ethernet Distance | 100m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Fiber Count | 1-144 cores | Cable Diameter | 0.9-3.0mm |
| Cable Jacket | LSZH,PVC,OFNP,OFNR | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
MM OM5 50/125 Patch cables
OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.
Specification:
| Connector Type | LC to LC.. | Polish Type | UPC to UPC |
| Fiber Mode | OM5 50/125μm | Wavelength | 850/1300nm |
| 40G Ethernet Distance | 440m at 850nm | 100G Ethernet Distance | 150m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Effective Modal Bandwidth (at 850nm) | ≥4700 MHz·km | Effective Modal Bandwidth (at 953nm) | ≥2470 MHz·km |
| Fiber Count | 1-144 Cores | Cable Diameter | 0.9-3.0mm |
| Cable Jacket | PVC,LSZH,OFNP,OFNR | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
High Quality Fibre Optic Patch Cable Guarantee
Certification:
Our products are confirmed by these certifications
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
